Marine Pumps

Robust and efficient pumps for circulation, ballast, and sewage systems and spare parts for marine applications.

Marine Solutions

Reliable Marine Pump Systems from GMES

We manufacture and supply a full range of marine pump systems and spare parts, compatible with leading brands like Taiko Kikai, Shinko, Naniwa, Ishii, Heishin, Miura, Teikoku, Shin Shin, and China-made pumps.

Our pumps are used in critical systems including seawater cooling, ballast, boiler feed, sewage transfer, and more.

Marine Pump Systems

Marine Pump Types & Applications

GMES provides a comprehensive range of high-quality marine pumps and spare parts for various shipboard applications and system requirements.

Air Conditioning Cooling Sea Water Pump

Design Vertical, single-stage, single-suction centrifugal pump

Capacity 30–500 m³/h

Head 13–55 m

Applications Cooling water, general service, ballast

Main Cooling Sea Water Pump / Ballast Pump

Design Vertical, single-stage, double-suction centrifugal pump

Capacity 300–3000 m³/h

Head 13–45 m

Applications Circulating water, cooling, ballast

Fresh Water Pump / Sanitary Sea Water Pump (Self-Priming)

Design Horizontal, self-priming, single-suction centrifugal pump

Capacity 2–80 m³/h

Head 15–65 m

Applications Freshwater, sanitary, cooling

Seawater & Freshwater Transfer Pump

Design Horizontal mixed-flow, single-stage, close-type impeller

Capacity 1500–24000 m³/h

Head 10 m

Applications Dockyard transfer, power plant

Double Suction Volute Pump

Design Horizontal, one-stage, double-suction centrifugal pump

Capacity 2–2500 m³/h

Head 8–100 m

Applications F.O. & D.O. transfer, boiler circulation

Fire & General Service / Ballast Pump

Design Vertical, 2-stage, single-suction centrifugal pump

Capacity 40–500 m³/h

Head 20–170 m

Applications Firefighting, bilge, ballast

Boiler Feedwater Pump

Design Horizontal, 4-stage, single-suction centrifugal pump

Capacity 1–150 m³/h

Head 120–350 m

Applications Feed water, high-pressure water supply

Sewage Transfer Pump

Design Horizontal, one-stage, side-open centrifugal pump

Capacity 9–450 m³/h

Head 12–30 m

Applications Sewage, sludge transfer

Gear Pump

Design Horizontal rotary gear pump with internal bearing & steam jacket

Capacity 1–20 m³/h

Head 0.2–2.5 MPa

Applications Lubricating oil, H.F.O. circulation

Quality Components

Pump Spare Parts

GMES manufactures and supplies a comprehensive range of high-quality pump spare parts, ensuring optimal performance and longevity for all marine pump systems.

Double Suction Impeller

Use Sea water

Size OD 220~540mm

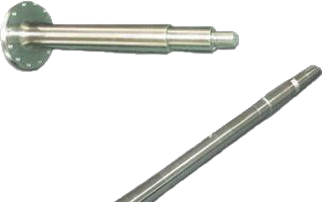

Shaft

Types Flange shaft for sea water, fresh water

Size Range L= 120~1500mm

Impeller

Use Sea water, fresh water, boiler water

Size OD 120~380mm

Casing Ring

Use Sea water / Fresh water

Size OD 45~380mm

Sleeve

Use Sea water / Flange water pump

Size L= 55~350mm

Bearing Metal

Use Sea water / Flange water pump

Size ID 35~140mm

Mechanical Seal

Use Multi-purpose

Size ID 35~140mm

Request Information

Need Marine Pumps?

Contact our technical team for assistance with marine pump selection, compatibility information, or to request a quote for your specific requirements.

Quality Assurance

All marine pumps meet or exceed OEM specifications, with strict material control and precision manufacturing for maximum reliability.

Diverse Applications

Comprehensive range of pumps for cooling, ballast, circulation, freshwater, seawater, fire, bilge, sewage and other marine applications.

Technical Support

Our experienced technical team provides installation guidance, pump selection assistance, and compatibility verification for all marine pumping systems.
